방사형 체외 충격파 치료기
Radial Shockwave Therapy Device
HP50 ULTRA
Excellent performance and convenience manufactured in Korea.
The compact radial shock wave system for routine applications- ·
Getting started with radial shockwave therapy
- ·
Effective in musculoskeletal pain relief
- ·
Easy dial mode
- ·
Resonable price
- ·
Swiss Storz Medical AG OEM Manufactured
-
Dimensions
400 x 180 x 500 mm (W x H x L)
-
Weight
8.9 kg
-
Frequency range
1 ~ 15 Hz
-
Pressure range
1.0 ~ 4.0 bar
- ·
제품특징
Features
-
LED 제어판 및 간편한 다이얼모드
LED Display &
Easy dial mode -
저소음 빌트인 컴프레서
Low noise Built-in
Compressor -
저렴한 유지비용
Reasonable
Maintenance Cost -
사용자 최적화된 치료속도와 강도
Optimum Healing
Speed and Intensity -
세련되고 슬림한 디자인과 편리성
Refined Slim Design
and Handiness
근막통증증후군에 최적화된 방사형 충격파 핸드피스

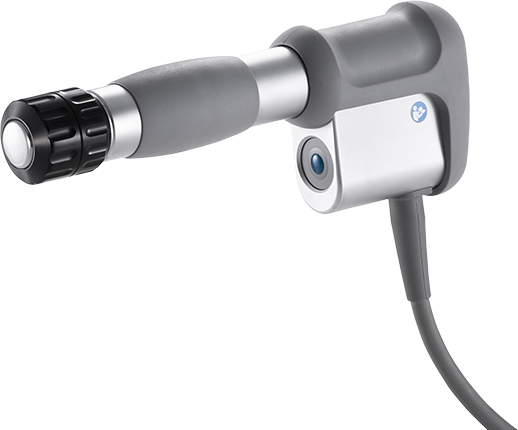

RADIAL HANDPIECE
An effective treatment for MPS (Myofascial Pain Syndrome)
Ergonomic Design for practitioners
Low noise · Low vibration
Many types of transmitters appliable according to symptoms
-
트랜스미터
Transmitters
-
방사형 핸드피스에 적용 가능한 다양한 충격전달기
Different shock transmitters
for radial handpieceA range of specialised transmitters for different treatment areas
Easy to screw in and out
Standard Transmitters Trigger Points/Enthesopathies
-
A6
Point
- ·
Ø 6 mm, AkuSt transmitter
- ·
Shock wave acupuncture, trigger points
- ·
Penetration depth : 0-20 mm
- ·
Intensity :
- ·
-
R15
Standard
- ·
Ø 15 mm, standard transmitter
- ·
All enthesopathies
- ·
Penetration depth: 0-35 mm
- ·
Intensity :
- ·
-
C15
Ceramic Energy
- ·
Ø 15 mm, CERAma-x® transmitter
- ·
Any type of enthesopathy
- ·
Penetration depth: 0-30 mm
- ·
Intensity :
- ·
-
Ro40
Beam
- ·
Ø 15 mm, Beam transmitter
- ·
Any type of enthesopathy
- ·
Penetration depth: 0-35 mm
- ·
Intensity :
- ·
-
DI15
Golden Depth
- ·
Ø 15 mm, Deep Impact® transmitter
- ·
Deep target areas, chronic disorders, local trigger points
- ·
Penetration depth: 0-50 mm
- ·
Intensity :
- ·
-
F15
White Soft
- ·
Ø 15 mm, Focus-Lens transmitter
- ·
Superficial pain regions, muscles of astication, cervical spine
- ·
Penetration depth: 0-30 mm
- ·
Intensity :
- ·
Standard Transmitters Myofascial Treatment
-
D20-S
Standard Oscillator
- ·
Ø 20 mm, D-ACTOR® transmitter
- ·
Muscle and connective tissue
- ·
Penetration depth: 0-50 mm
- ·
Intensity :
- ·
-
D20-T
Golden Oscillator
- ·
Ø 20 mm, D-ACTOR® transmitter
- ·
For professional athletes, high-energy applications
- ·
Penetration depth: 0-50 mm
- ·
Intensity :
- ·
-
D35-S
Large Oscillator
- ·
Ø 35 mm, D-ACTOR® transmitter
- ·
Muscle and connective tissue, large muscles
- ·
Penetration depth: 0-60 mm
- ·
Intensity :
- ·
다양한 증상 치료
Manifold Indications
-
Medial Epicondylitis
-
Calf Pain
-
Plantar Fasciitis
-
Back Pain
